LED三防平臺燈
LED three flat lamp
適用范圍：
適用于化工，煤炭等工礦企業以及潮濕多灰塵場所，如各種粉狀成品，班成品加工廠，倉庫，車間，停車場等。
Scope of application：
Applicable to chemical industry, coal and other industrial and mining enterprises and damp and dusty place, such as various powder products, product processing factory class, workshop, warehouse, parking lot
基本技術參數：Specification
型號規格
Model specification
|
額定電壓
Rated voltage（V）
|
功率
Power（W）
|
防爆標志
Explosion proof marks
|
防腐等級
Anticorrosion grade
|
防護等級
Protection grade
|
LD-PT210
|
AC85-265V
|
2*10W
|
ExdII CT6
|
WF2
|
IP65
|
LD-PT218
|
AC85-265V
|
2*18W
|
ExdII CT6
|
WF2
|
IP65
|
產品特色
1.燈罩注塑成型，透明抗UVPC材質，耐沖擊，4MM均布條紋，兩端細麻砂面設計。燈底注塑成型，有加強筋，不透明抗UVPC材質，天然硅橡膠封條，具有較強的防水、防塵、防腐功能。
2.采用直平白底噴漆金屬反光板和高亮度LED燈管光效顯著。
3.燈具有單管和雙管之分，可供選擇。
Product characteristics
1.shades of injection molding, the transparent UVPC resistant materials, impact resistance, 4MM uniform stripes, two fine linen sand surface design. Light at the end of injection molding, a stiffener, opaque UVPC resistant materials, natural silicon rubber seals, has a strong waterproof, dust-proof, anti-corrosion function.
2.straight with bottom spray metal reflecting plate and high brightness LED lamp light effect remarkable.
3.lamps are single and twin-tube division, to choose.

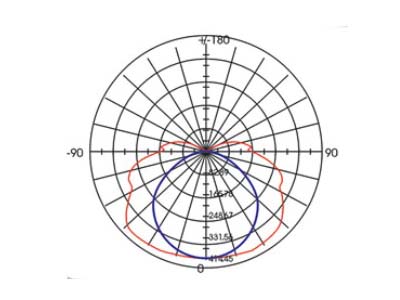

配光曲線：Light distribution curve:
