LED防爆平臺燈
LED platform lamp
適用范圍：
1.適用于1區，2區危險氣體場所
2.適用于石油化工，船舶，海上鉆井，采油平臺等場所
3.適用于ⅡA,ⅡB,ⅡC類爆炸性氣體環境，
Scope of application：
1.Can be used in zone 1, zone 2 dangerous places
2.Application in the petrochemical industry, shipbuilding, offshore drilling, oil production platform and other places
基本技術參數 ：Specification
|
型號規格
Model specification
|
額定電壓
Rated voltage（V）
|
功率
Power（W）
|
防爆標志
Explosion proof marks
|
防腐等級
Anticorrosion grade
|
防護等級
Protection grade
|
|
LD-PT218/G
|
AC85-265V
|
2*18W
|
ExdII CT6
|
WF2
|
IP65
|
產品特色
1.外殼采用SMC壓膜成形，燈罩采用聚碳酸酯注射成形，強度高、并具有較強的防腐能力。
2.整體采用密封結構，具有較強的防水防塵能力。
3.內裝2根LED燈管，可根據客戶要求選擇功率。
4.可內置應急裝置，具有過充過敏保護功能。
5、專用鋰電電池，應急時間大于90分鐘，充電時間18h，瞬間啟動
Product characteristics
1 shell is made of SMC film forming, shade uses polycarbonate injection molding, high strength, and has strong anti-corrosion ability.
2 whole sealed structure, has good waterproof and dustproof performance.
3 with 2 LED lamp, according to customer requirements and selection of power.
4 built-in emergency device, with over charge allergy protection function.
5dedicated lithium battery, emergency time greater than 90 minutes, the charging time of 18h, instant start

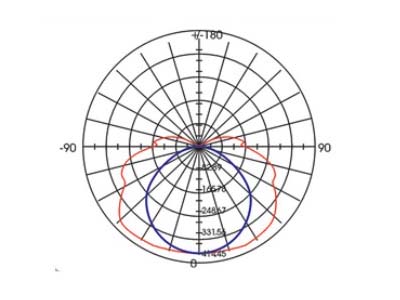

配光曲線：Light distribution curve:

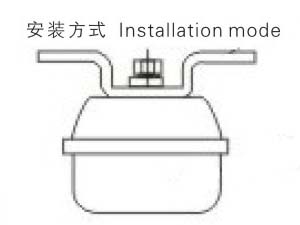

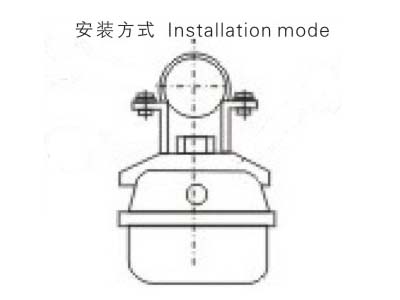

安裝方式 Installation mode
