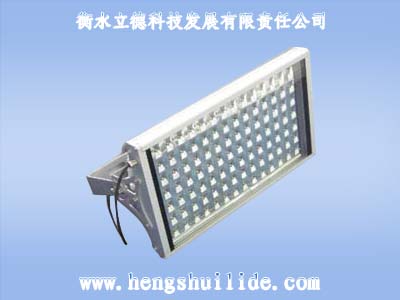

LED泛光燈
LED Floodlight
適用范圍：
景觀照明、舞臺照明、建筑物照明、廣告牌照明、綠化景觀照明、酒店、隧道照明、文化燈專門設施照明?？蓾M足特殊角度照明需要，連接式信號接頭，接通電源即可亮燈，無需任何其他配件。
Scope of application：
Landscape lighting, stage lighting, building lighting, advertising lighting, landscape lighting, tunnel lighting, hotel, cultural specialized facilities lighting lamp. It can meet the special need of illumination angle, connection type signal connector, connect the power to lighting, without any other accessories.
● 產品特色：
1. 節能：比傳統鈉燈管節能30%以上
2. 壽命長：LED投光燈正常使用壽命為5萬小時以上
3. 無閃爍：LED采用恒流驅動，啟動快，無閃爍，保護眼睛
4. 綠色環保：LED投光燈無紫外線輻射，不含汞等有毒物質
5. 高效角度反光板：專用角度反光板，能將LED發出的光線，更有效反射到地面
The product characteristics:
1 energy saving than the traditional sodium lamp energy saving more than 30%
2 long life: LED cast light normal service life of 50000 hours or more
3 no flicker: LED constant current drive, fast starting, no flashing, eye protection
4 green environmental protection: LED cast light lamps without ultraviolet radiation, mercury and other toxic substances
5 efficient angle reflector: special angle reflector, can LED emits light, more effective reflection to the ground
基本技術參數 ： Specification
|
型號規格
Model specification
|
輸入電壓
Rated voltage（V）
|
功率
Power（W）
|
防腐等級
Anticorrosion grade
|
防護等級
Protection grade
|
進線電纜外徑
The cable outer diameter
|
出線口螺紋
Outlet thread
|
|
LD-F060
|
AC85-265V
|
60W
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|
|
LD-F120
|
AC85-265V
|
120W
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|
|
LD-F180
|
AC85-265V
|
180W
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|

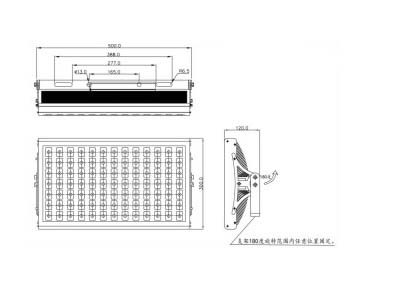

安裝尺寸 Mounting dimensions

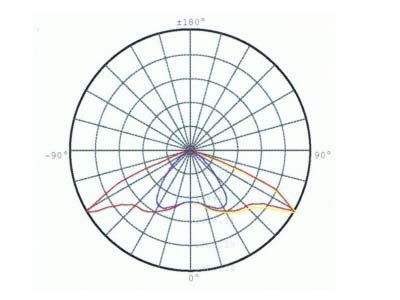

配光曲線： Light distribution curve:
