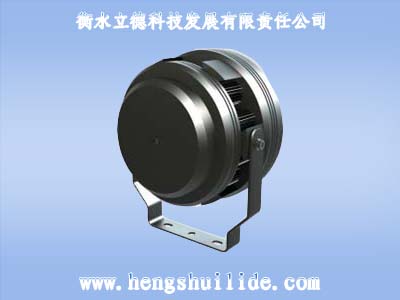

LED防爆投光燈
LED light projection lamp
適用范圍：
LED防爆投光燈主要適用于爆炸氣體環境中1區或2區，為ⅡA,ⅡB，ⅡC類T6組及以下級別，組別的爆炸性危險場所，在交流電壓220V的電路中，作為照明之用。
Scope of application：
LED light projection lamp is mainly used in explosive gas environment in zone 1 or zone 2, for A B, II, II class C T6 group level and below, group explosive dangerous places, in AC voltage 220V circuits, as for lighting.
基本技術參數：Specification
|
型號規格
Model specification
|
輸入電壓
Rated voltage（V）
|
功率
Power（W）
|
防爆標志
Explosion proof marks
|
防腐等級
Anticorrosion grade
|
防護等級
Protection grade
|
進線電纜外徑
The cable outer diameter
|
出線口螺紋
Outlet thread
|
|
LD-PT0360/G
|
AC85-265V
|
60W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|
|
LD-PT120/G
|
AC85-265V
|
120W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|
|
LD-PT180/G
|
AC85-265V
|
180W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|

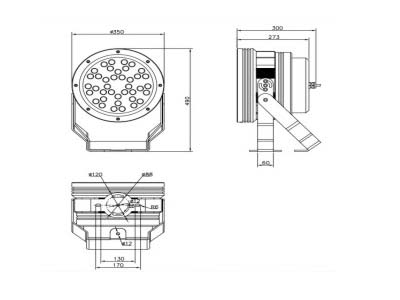

外觀尺寸及安裝方式

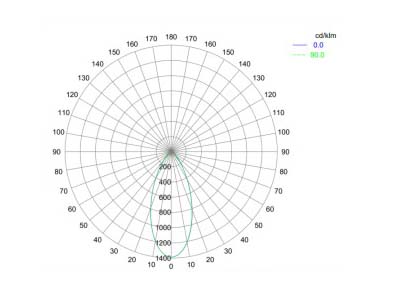

配光曲線：Light distribution curve:
產品特點：
1.選用國際上最先進的LED光源及電源穩壓系統；
2.省電節能、使用壽命長
3.交直流兩用
4.照射距離100-150米左右
5.外殼采用1050純鋁，車床加工，表面氧化噴砂，強度高、并具有較強的防腐能力、安全，環保，免維護
Features：
1.Selection of the most advanced LED light source and power supply system;
2.Energy saving, long service life
3.AC-DC dual-electricity
4.Irradiation distance 100-150 meters
5.Shell is made of 1050 pure aluminum, lathe processing, surface oxidation sandblasting, high strength, and has strong anti-corrosion ability, safety, environmental protection, maintenance free
